Fuel System
Cockpit, Port Instrument Panel Cockpit, Stbd Fuel System

Pilot's Notes
Hurricane IIA, IIB, IIC, IID and IV Aircraft
Merlin XX Engine

Reproduced from a copy of Air Publication 1564B&D, published by the Air Ministry, from the author's collection.

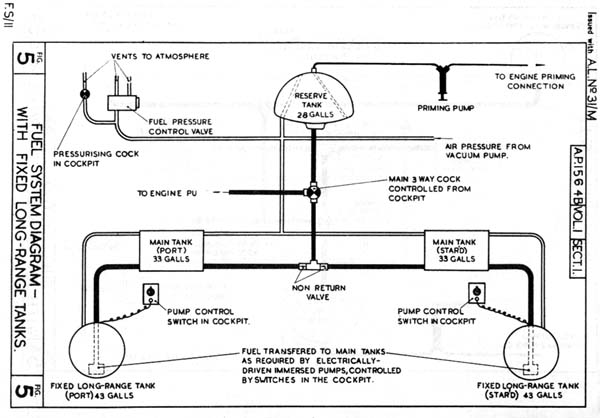

Fuel System Diagram - with Fixed Long-Range Tanks

h_fig5.JPG - 43.56 K

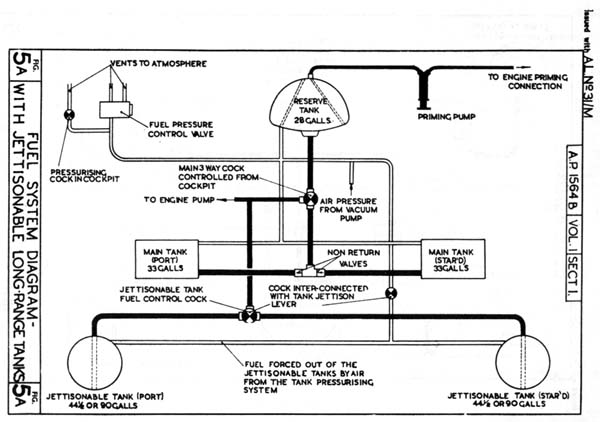

Fuel System Diagram - with Jettisonable Long-Range Tanks

h_fig5a.JPG - 43.19 K
